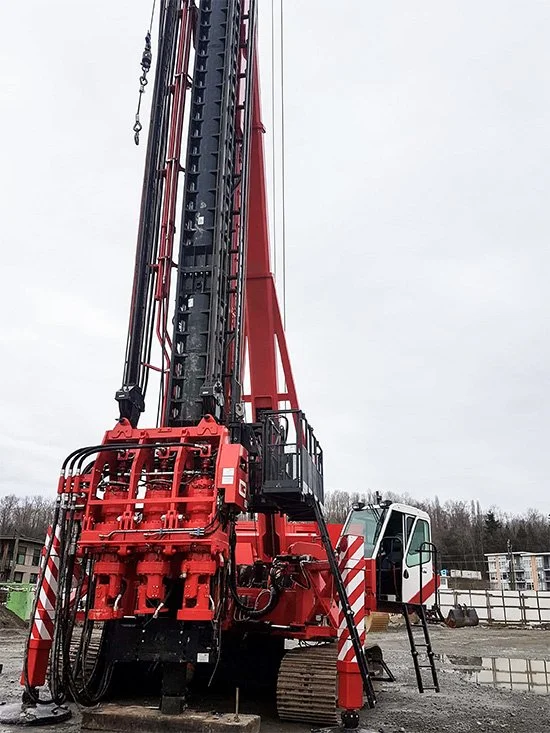

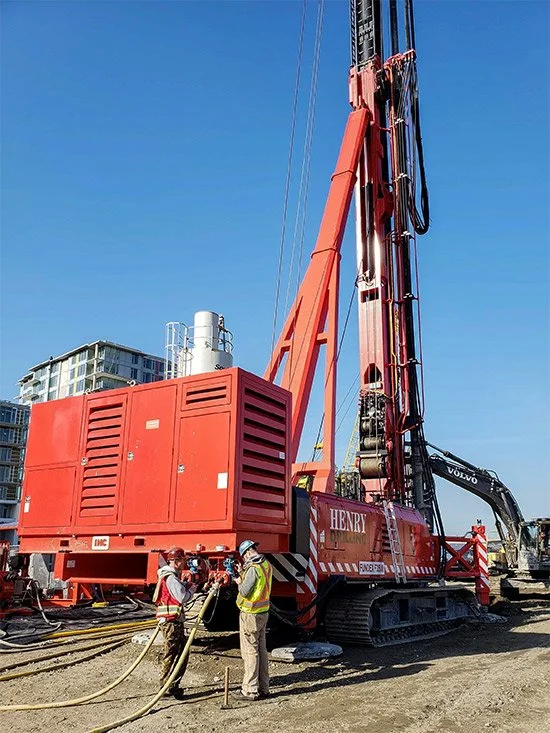

The Fundex F3500 is one of the largest machines in the range of Fundex multifunctional foundation rigs. The F3500 is used for a variety of drilling and pile-driving methods such as soil displacement drilling, CFA drilling, cast-in-situ and pre-cast pile-driving. The cabin can be swiveled out to provide a good view of the work. The extension pieces for the leader are fed in from the bottom, which is beneficial in limited spaces and makes for easy and fast installation. The strong tubular leader is suitable for torque of 500kNm over the entire length. Because of the unique leader construction, it is possible to lower the leader 35 meters beneath the soil level. Stability of the F3500 is high thanks to front and rear supports and a low centre of gravity. Because of the use of an additional powerpack the transport weight is low.
Technical specifications:
DEUTZ 6-cylinder engine.
310 hp / 227 kW engine power.
Bosch-Rexroth, max. 275 – 300 l/min. at 320 bar hydraulic pump.
Winches:
– 1 x 15 tonnes (vertical movement of the leader)
– 1 x 12.5 tonnes (pull up)
– 1 x 12.5 tonnes (pull down or pile winch)
– 1 x 5 tonnes (auxiliary winch for rotating JIB)
– 1 x 5 tonnes (pile winch)
– 1 x 1.5 tonnes (auxiliary winch)
– 1 x 0.9 tonnes (lift winch)
50 ton pull down capacity.
100 tons with 35-meter-long leader (80 tons if 40 metres).
Length of leader:
– Minimum 25 metres (82 ft)
– Standard 35 metres (114.8 ft)
– Optional 40 metres (131.2 ft)
