RENTALS - CRANES
Our specialized crane fleet is engineered to handle the toughest lifting challenges across a wide range of deep foundation and heavy civil construction applications. Featuring high-performance telescopic crawlers, heavy-duty cycle cranes, and lattice boom models, we provide reliable, high-capacity lifting solutions tailored to support your project’s most demanding engineering needs. Designed for maximum efficiency, our cranes offer exceptional reach, superior load handling, and optimal mobility—even in restricted spaces or rough terrain conditions.

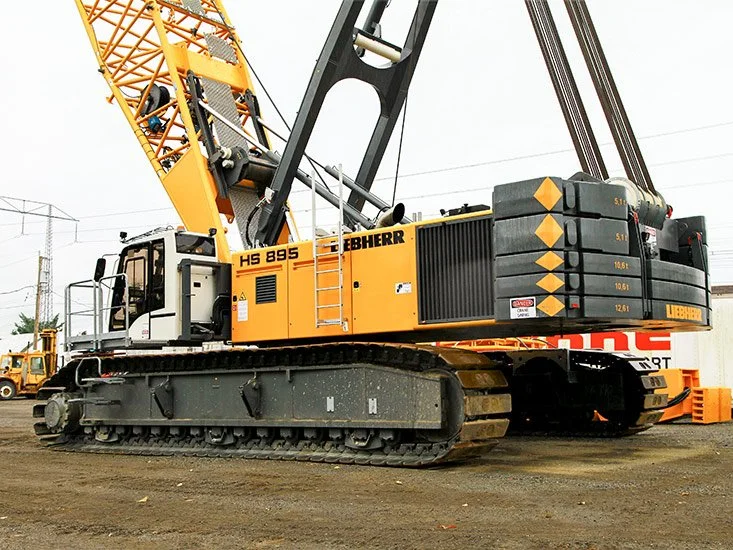

The Liebherr HS 895 operating weight includes:
The basic machine with HD under-carriage.
2 main winches 350 kN including wire ropes (150m).
Heavy duty boom for duty cycle operations.
The main boom max. length is 84.2 m with a fixed jib of 11m – 26m.
670KW engine to provide fast cycle times and to run a casing oscillator.
The lifting capacities are valid for 360 degrees of swing with a speed from 0-3.6 rpm and 3 speed ranges to increase swing precision.
The winches on the Liebherr are outstanding in their compact design and easy assembly. Clutch and braking functions on the free-fall system are provided by a compact design, low wear and maintenance-free multi-disc brake. The drag and hoist winches use pressure controlled, variable flow hydraulic motors. This system features sensors that automatically adjust oil flow to provide max winch speed depending on the load. The main pumps are operated by a distributor gearbox. Axial piston displacement pumps work in closed and open circuits supplying oil only when needed.

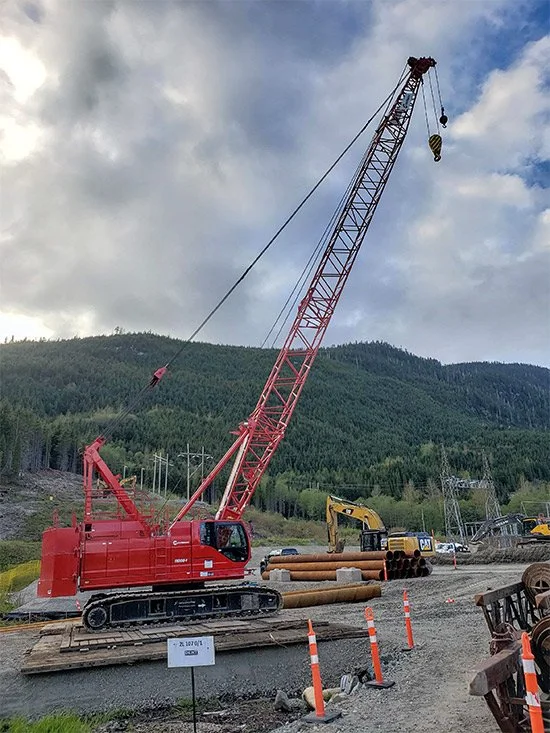

The Manitowoc 11000-1 Lattice-Boom Crawler Crane is a competitive offering from Manitowoc in the 100 mt (110 USt) crawler crane market. Featuring self-assembly capabilities and button style wire rope terminations allowing for a quick and easy assembly.
The 11000-1 comes equipped with new energy saving systems. The Green-Engine mode conserves fuel during full speed drum operation under load at a lower engine RPM. It has a self-erecting counterweight that eliminates the need for an assist crane and allows for reduced counterweight chart operation. The retractable crawlers can be extended and retracted for better jobsite maneuverability.
Some features include:
247 kW (332 Hp) engine.
Fast, efficient self-assembly and disassembly.
100 t (110 USt) capacity.
61,0 m (200 ft) heavy-lift boom.
Max boom + jib combination of 57.9 m (190 ft) + 18.3 m (60 ft).
213 kW (285 HP) engine.
163 m/min (535 fpm) maximum line speed.
113 kN (25,200 lb) rated line pull.

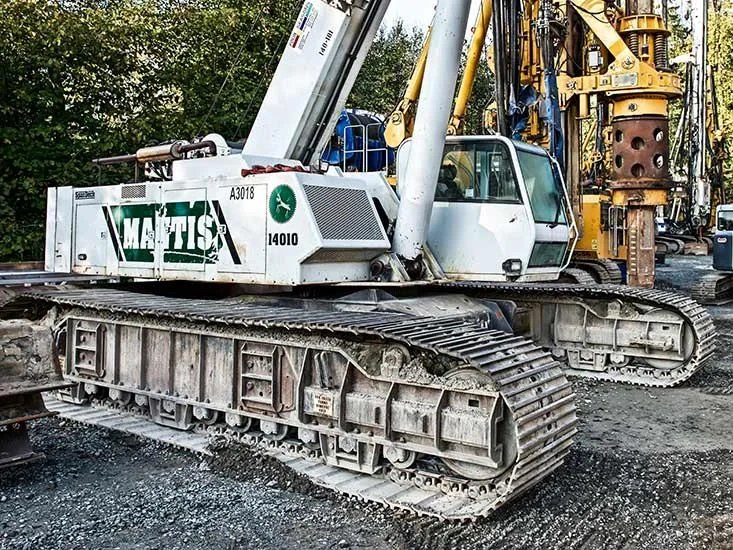

The Mantis 14010 Telescopic Crawler Crane has a capacity of 70-tons and a maximum counterweight of 30,000lbs (13.6-tonnes). The Mantis has an extraordinarily low center of gravity with a minimum overhead clearance height of just 10ft 1ins (3.06m). Rated at a 70-ton lifting capacity and a full 10ft (3m) radius, the Mantis can pick-and-carry its entire load chart through a full 360. With tracks extended, the crane can make lifts with the main boom fully telescoped to 111ft 6ina (34m) and laid-out horizontally. Even with zero counterweight installed – the 14010 can pick-and-carry 60-tons and operate with its main boom fully extended to reach a radius of 90ft (28m).
The Mantis specializes in narrow roadways with tracks retracting for 12ft 6ins overall width. It can walk with 70,600lbs on booms to 61ft (18.6m) or 44,000lbs on the fully telescoped main boom. The Mantis 14010 can pull through deep mud without bogging down and offers a new luxury cab with state-of-the-art operator aids.
Key features include:
Sequence-synchronized four-section full power boom of 111ft 6ins (34m) length.
Lattice boom extensions and offsetable jibs for up to 167ft (50.9m) tip height.
240 hp (179kW) diesel engine standard.
Low ground bearing pressure of 9.3 psi (0.65 kg/cm2).
Fast two-speed independent hydrostatic track drive to 2.5 mph (4.0 km/hr).
New deluxe operations cab and standard lmi and anti-two-block devices.
Track contra-rotation allows pivot turns on the spot.
Steep 46% gradeability thanks to low center of gravity.
Hydraulic on-the-fly track frame retraction and extension.
High 14ins (356mm) ground clearance helps avoid damage and snagging.

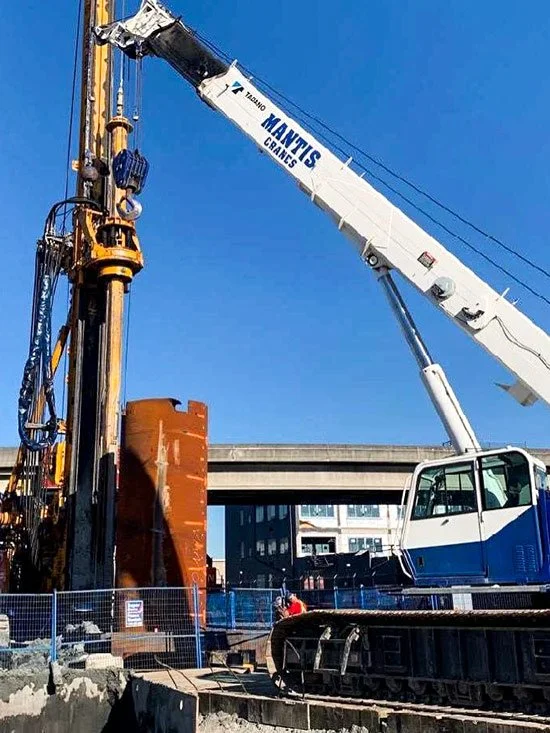

The Mantis 15010 Telescopic Crawler Crane combines renowned heavy-duty design with new control and operating features. It is designed to handle heavy-duty cycle applications as well as pure lift crane work. The 15010 is designed from the ground up as a telescopic boom crawler crane. It employs much less counterweight than other varieties of cranes to avoid rearward stability problems on sloping ground. This together with its 260 hp Cummins engine and high-pressure hydraulics allows for extraordinary gradeability of up to 68%.
The 15010’s class leading lift capacities are achieved by the wide stance telescopic crawler base instead of massive counterweights. This stability is demonstrated by its ability to pick and carry its full 75t load chart with its tracks extended; and even more impressively can pick and carry 50 tons at a full 360° with its tracks retracted to an overall width of only 12 ft – 6 in.
Key features include:
75-tons pick-and-carry capacity through 360°.
Two-piece bi-fold (30’ / 50’) lattice boom extension & offsetable jib for up to 167ft tip height.
Winches with grooved drums, cable followers and 3rd wrap shutdown.
Unladen ground bearing pressure of 9.3 psi.
Hydraulic on-the-fly track frame retraction and extension.
12-inch ground clearance.
Spotter lugs.
2 video cameras for winch view, rear view.

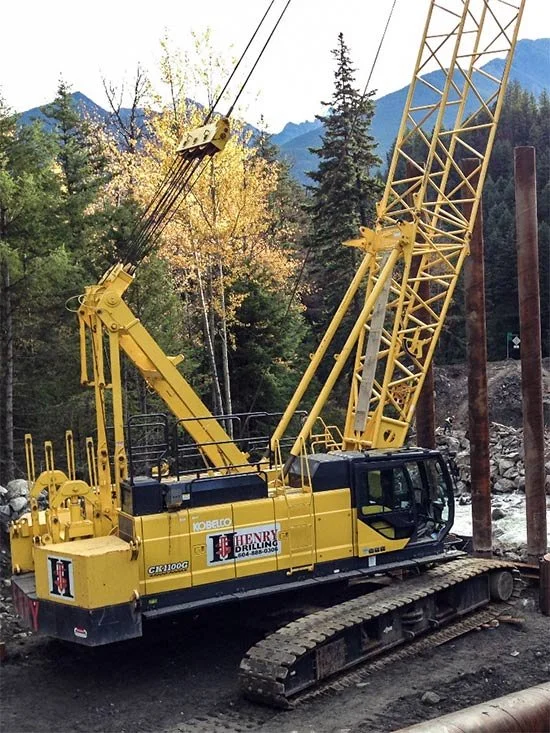

The Kobelco CK1100G Crawler Crane is designed from the ground up for reliable operation, convenient maintenance and easy transport. The CK1100G features a new engine that complies with EPA Tier IV Final standards. This crane has also been designed with energy saving assist systems known as the “G-modes”, which can achieve up to a 30% savings in fuel consumption. The “G-modes” include the auto idle stop system, energy saving winch control system, and the engine RPM limitation system.
The G-series cab gives the operator better visibility, mobility, and a relaxed environment to enhance efficiency. The cabs front glass has been increased adding an expanded field of view which provides improved operating conditions and increased safety and operability. Kobelco has designed a new monitor which displays hook height, wind speed, engine speed, gauges, over-swing prevention device, switches, error messages, and a display lamp of standard functions.
Other features of the G series include:
Max. lifting capacity of 110 US Tons (220,000 lbs).
Max. boom length of 200 ft (60.96m).
Max. boom and jib length of 190 ft (57.9m) and 60 ft (18.2m).
Compact structure allowing for greatly improved transportability.
A single or dual pump flow hydraulic circuit.
LMI touch screen.
Counterweight detection device.
Improved counterweight self-installation mechanism.
Newly improved (short) control levers.

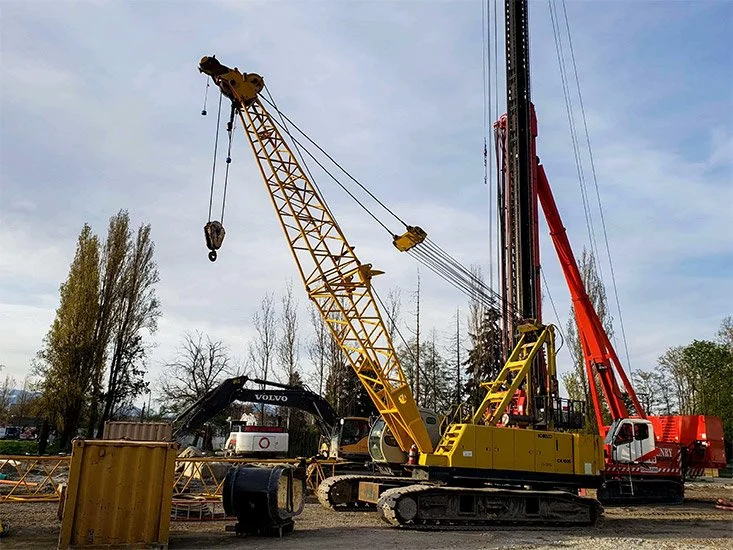

The Kobelco CK1000 Crawler Crane has a maximum capacity of 100 tons and a maximum main boom length of 200 feet, with a jib extension of an additional 60 feet. Like all Kobelco cranes, it is designed from the ground up for reliable operation, convenient maintenance, and easy transport. The CK1000 is fabricated from high tensile steel and optimized using CAD technology for unmatched rigidity. Fully hydraulic, it excels in all crawler crane operations.
It performs all crane tasks including load hoist, boom hoist, swing, propel and crawler extension/extraction, free-fall, as well as counterweight and crawler frame installation and removal.
Other key features include:
Max. lifting capacity of 100 US Tons (200,000 lbs).
Max. boom length of 200 ft (60.96m).
Max. boom and jib length of 190 ft (57.9m) and 60 ft (18.2m).
Hydraulic pumps are driven from heavy duty pump drive.
Total counterweight of 63,490 lbs (28,790 kg).
Crawler assemblies can be hydraulically extended for wide-track operation or retracted for transportation.
Hydraulic motor provides a 360 swing rotation.
