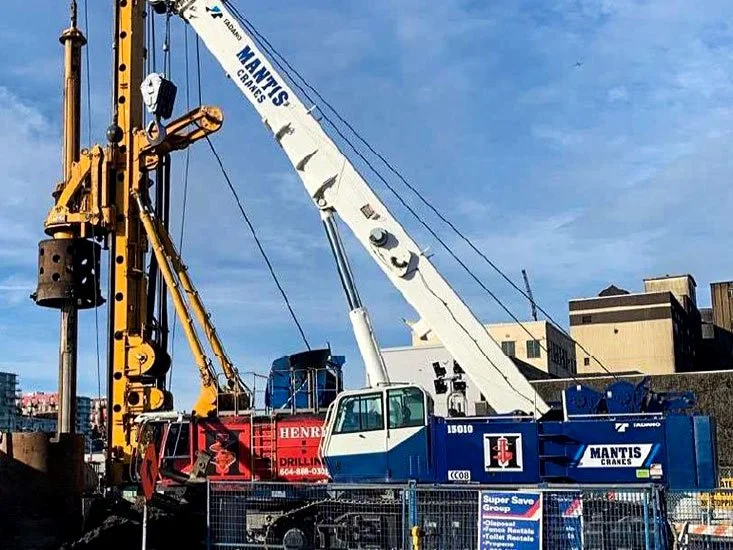

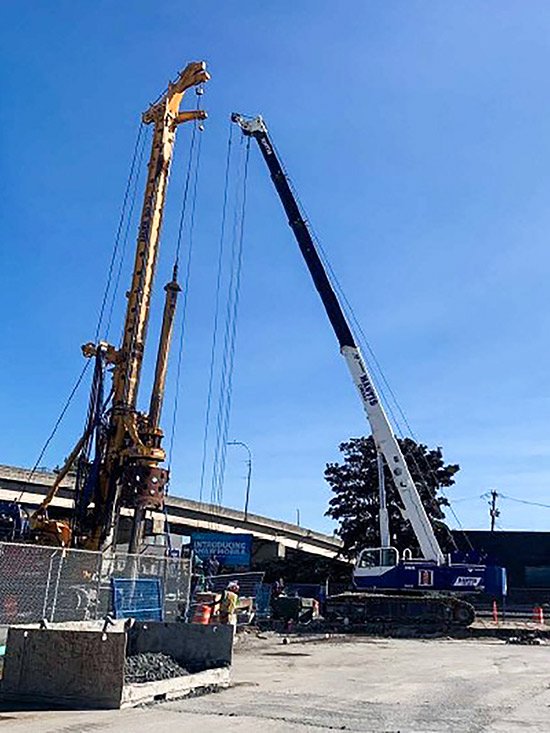

The Mantis 15010 Telescopic Crawler Crane combines renowned heavy-duty design with new control and operating features. It is designed to handle heavy-duty cycle applications as well as pure lift crane work. The 15010 is designed from the ground up as a telescopic boom crawler crane. It employs much less counterweight than other varieties of cranes to avoid rearward stability problems on sloping ground. This together with its 260 hp Cummins engine and high-pressure hydraulics allows for extraordinary gradeability of up to 68%.
The 15010’s class leading lift capacities are achieved by the wide stance telescopic crawler base instead of massive counterweights. This stability is demonstrated by its ability to pick and carry its full 75t load chart with its tracks extended; and even more impressively can pick and carry 50 tons at a full 360° with its tracks retracted to an overall width of only 12 ft – 6 in.
Key features include:
75-tons pick-and-carry capacity through 360°.
Two-piece bi-fold (30’ / 50’) lattice boom extension & offsetable jib for up to 167ft tip height.
Winches with grooved drums, cable followers and 3rd wrap shutdown.
Unladen ground bearing pressure of 9.3 psi.
Hydraulic on-the-fly track frame retraction and extension.
12-inch ground clearance.
Spotter lugs.
2 video cameras for winch view, rear view.
