Kobelco CK1000

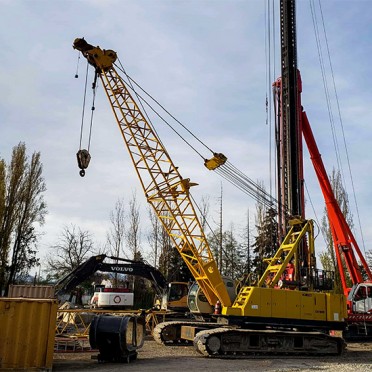

The Kobelco CK1000 Crawler Crane has a maximum capacity of 100 tons and a maximum main boom length of 200 feet, with a jib extension of an additional 60 feet. Like all Kobelco cranes, it is designed from the ground up for reliable operation, convenient maintenance, and easy transport. The CK1000 is fabricated from high tensile steel and optimized using CAD technology for unmatched rigidity. Fully hydraulic, it excels in all crawler crane operations.

It performs all crane tasks including load hoist, boom hoist, swing, propel and crawler extension/extraction, free-fall, as well as counterweight and crawler frame installation and removal.

Other key features include:

  • null
    Max. lifting capacity of 100 US Tons (200,000 lbs).
  • null
    Max. boom length of 200 ft (60.96m).
  • null
    Max. boom and jib length of 190 ft (57.9m) and 60 ft (18.2m).
  • null
    Hydraulic pumps are driven from heavy duty pump drive.
  • null
    Total counterweight of 63,490 lbs (28,790 kg).
  • null
    Crawler assemblies can be hydraulically extended for wide-track operation or retracted for transportation.
  • null
    Hydraulic motor provides a 360 swing rotation.

Kobelco CK1000-II Brochure
