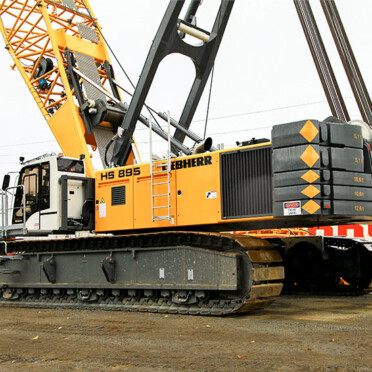

Liebherr HS895HD

The Liebherr HS 895 operating weight includes:

  • null
    The basic machine with HD under-carriage.
  • null
    2 main winches 350 kN including wire ropes (150m).
  • null
    Heavy duty boom for duty cycle operations.
  • null
    The main boom max. length is 84.2 m with a fixed jib of 11m – 26m.
  • null
    670KW engine to provide fast cycle times and to run a casing oscillator.

The lifting capacities are valid for 360 degrees of swing with a speed from 0-3.6 rpm and 3 speed ranges to increase swing precision.

The winches on the Liebherr are outstanding in their compact design and easy assembly. Clutch and braking functions on the free-fall system are provided by a compact design, low wear and maintenance-free multi-disc brake. The drag and hoist winches use pressure controlled, variable flow hydraulic motors. This system features sensors that automatically adjust oil flow to provide max winch speed depending on the load. The main pumps are operated by a distributor gearbox. Axial piston displacement pumps work in closed and open circuits supplying oil only when needed.

Liebherr HS895HD Brochure
