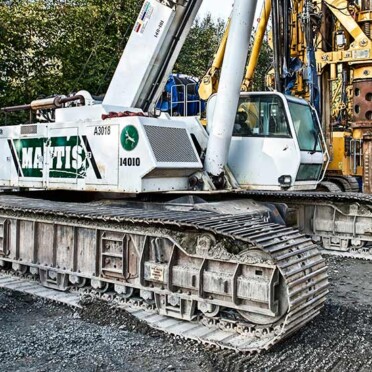

The Mantis 14010 Telescopic Crawler Crane has a capacity of 70-tons and a maximum counterweight of 30,000lbs (13.6-tonnes). The Mantis has an extraordinarily low center of gravity with a minimum overhead clearance height of just 10ft 1ins (3.06m). Rated at a 70-ton lifting capacity and a full 10ft (3m) radius, the Mantis can pick-and-carry its entire load chart through a full 360. With tracks extended, the crane can make lifts with the main boom fully telescoped to 111ft 6ina (34m) and laid-out horizontally. Even with zero counterweight installed – the 14010 can pick-and-carry 60-tons and operate with its main boom fully extended to reach a radius of 90ft (28m).
The Mantis specializes in narrow roadways with tracks retracting for 12ft 6ins overall width. It can walk with 70,600lbs on booms to 61ft (18.6m) or 44,000lbs on the fully telescoped main boom. The Mantis 14010 can pull through deep mud without bogging down and offers a new luxury cab with state-of-the-art operator aids.
Key features include:
